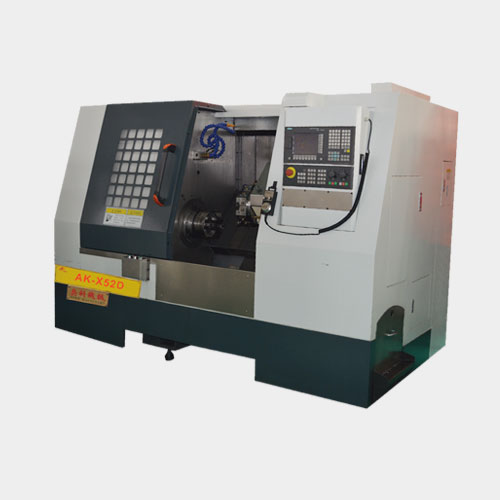

CNC lathe with split / integral casting inclined rail bed and cutter turretAK-X52/AK-X52D

Machine features

1. Using the through hole Φ 66mm spindle, the hole diameter is large, and the material passing size is larger in the row tool lathe.

2. Machine tool for full protection, absolutely waterproof chip, large space, practical.

3. Main performance: complete large size bar processing under normal speed.

4. The z-axis large screw rod is Φ 32mm, with large force and high speed.

5. The processing speed can reach up to 30 m / min.


13912661913
13862619178
Advisory

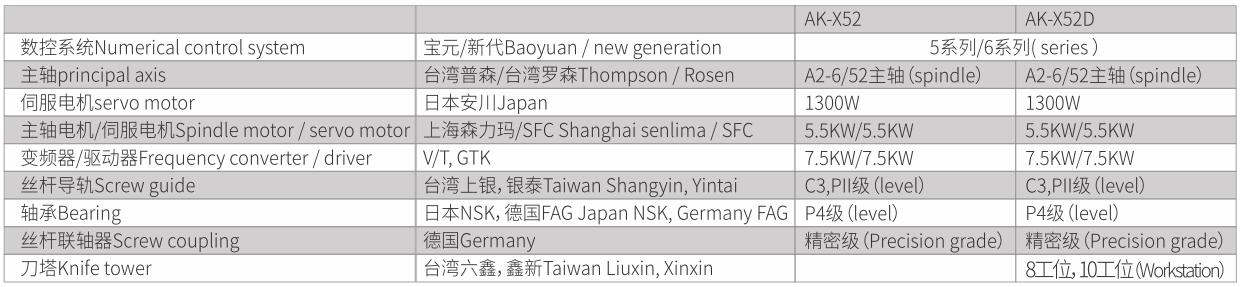

Configuration instructions

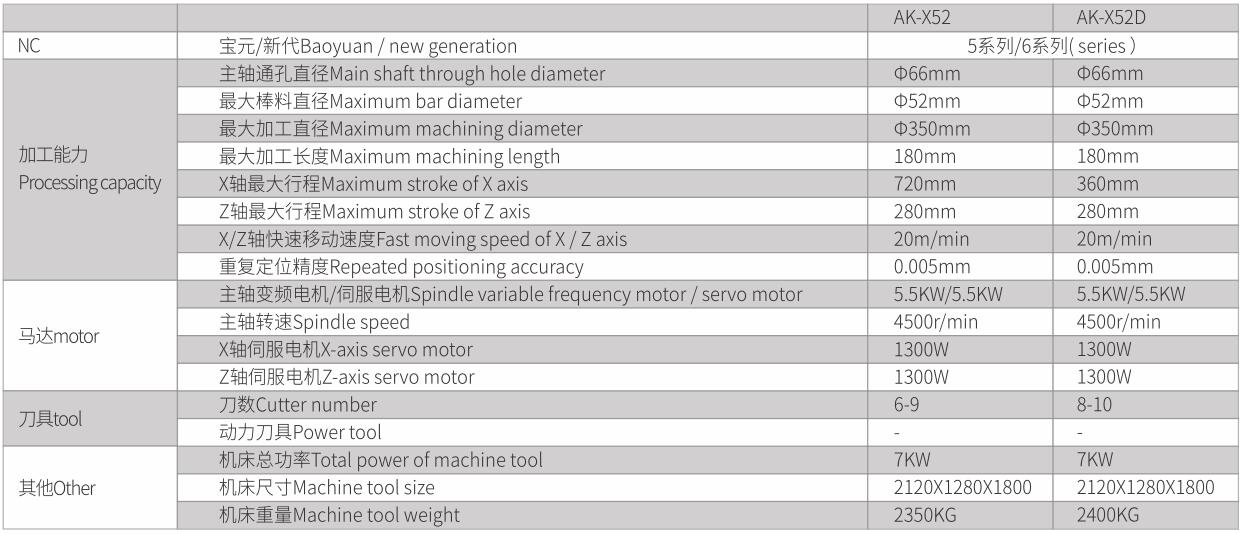

Technical parameter
